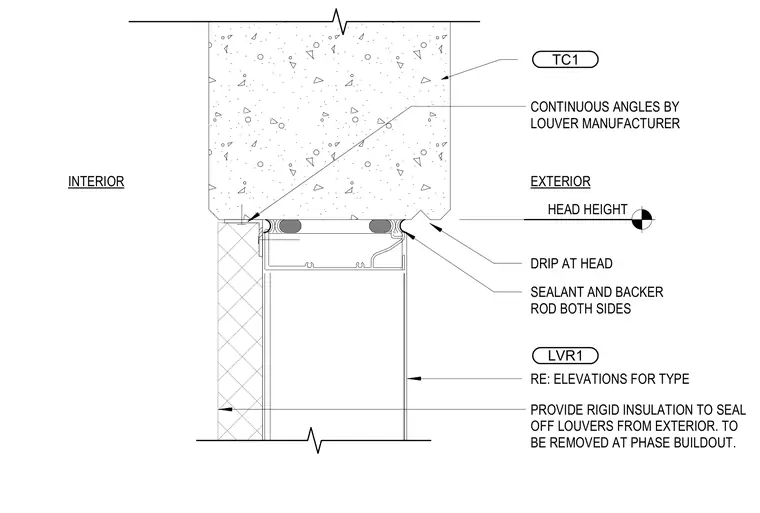

Continuous angles provided by the louver manufacturer secure the louver head assembly to the underside of the concrete structure. Sealant and backer rod are installed on both sides at the head height with a drip edge at the exterior. Rigid insulation is provided to seal off louvers from the exterior and is scheduled to be removed at phase buildout. The louver type is coordinated per the building elevations.
HEAD HEIGHT SEALANT AND BACKER ROD BOTH SIDES RE: ELEVATIONS FOR TYPE DRIP AT HEAD EXTERIOR INTERIOR CONTINUOUS ANGLES BY LOUVER MANUFACTURER LVR1 TC1 PROVIDE RIGID INSULATION TO SEAL OFF LOUVERS FROM EXTERIOR. TO BE REMOVED AT PHASE BUILDOUT.
