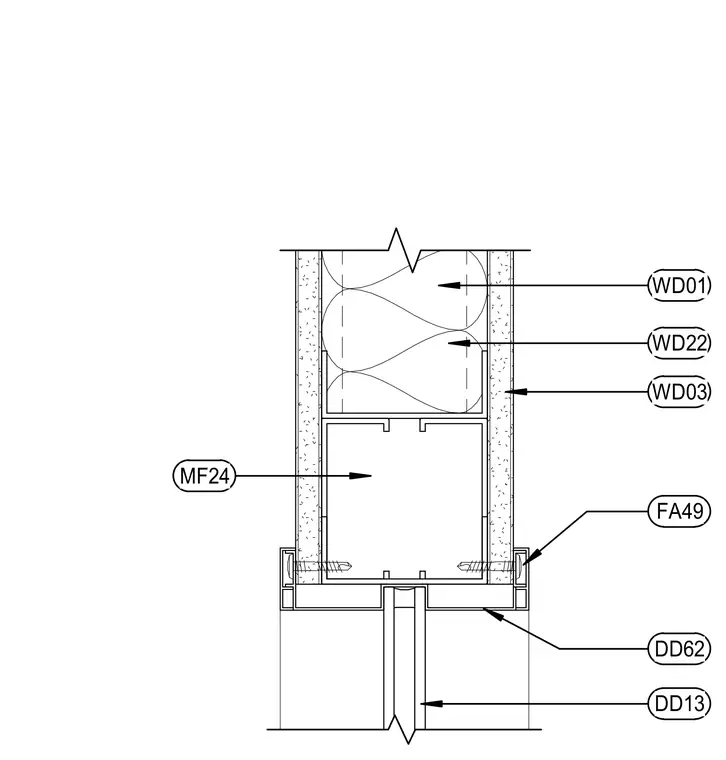

An aluminum window jamb profile connects to the surrounding wall assembly using mechanical fasteners. Gypsum board and insulation layers tie into the framing cavity around the perimeter. The glazing unit is secured within the aluminum frame members using appropriate stops and gaskets.
