Architectural · A-6R89S

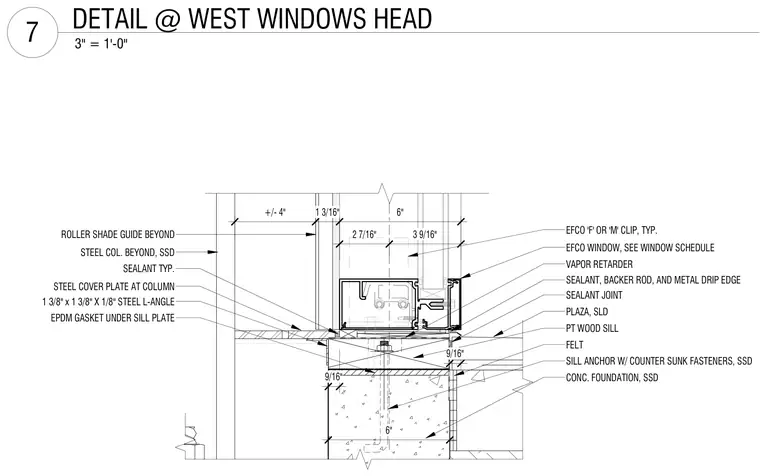

Window Head and Sill Detail at Concrete Foundation

Materials

Concrete Steel Timber / Wood Metal (misc.)Membrane / Roofing

Elements

Columns Windows Foundations / Footings Anchors / Embeds Connections / Plates

About this detail

An aluminum window head and sill assembly anchors to a concrete foundation. The EFCO window unit is secured with typical 'F' or 'M' clips and rests on a pressure-treated wood sill over felt paper and a concrete foundation. A sill anchor with countersunk fasteners secures the sill assembly. Additional components include a vapor retarder, EPDM gasket under the sill plate, metal drip edge with sealant and backer rod, and a structural steel column beyond with a steel cover plate and a one-and-three-eighths by one-and-three-eighths by one-eighth inch steel L-angle. A roller shade guide is visible beyond the interior side.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
