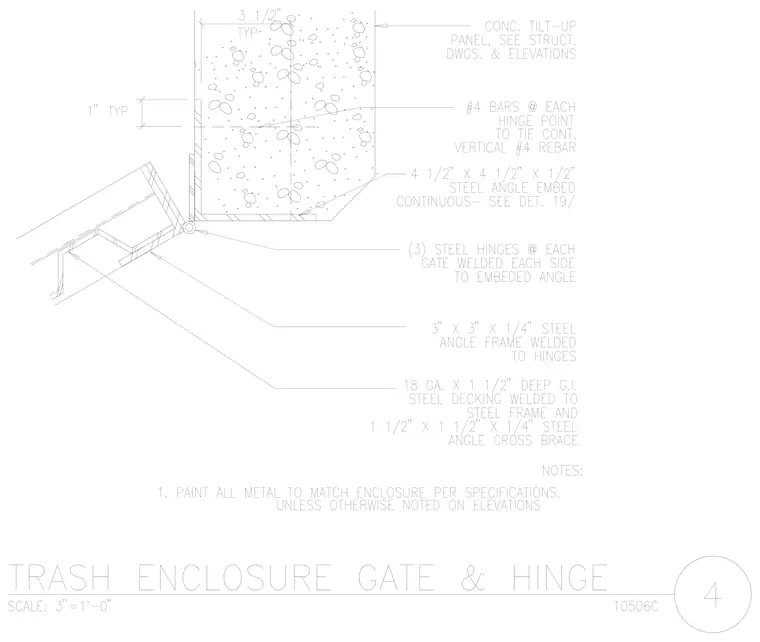

A trash enclosure gate frame constructed from 3" x 3" x 1/4" steel angles connects via three steel hinges welded on each side to a continuous 4 1/2" x 4 1/2" x 1/2" steel angle embed. The embed is anchored into a concrete tilt-up panel with number 4 bars at each hinge point tying to continuous vertical number 4 rebar. The gate infill consists of 18 gauge by 1 1/2" deep galvanized iron steel decking welded to the steel frame, reinforced with 1 1/2" x 1 1/2" x 1/4" steel angle cross bracing. All metal is painted to match the enclosure per specifications unless otherwise noted on elevations.
