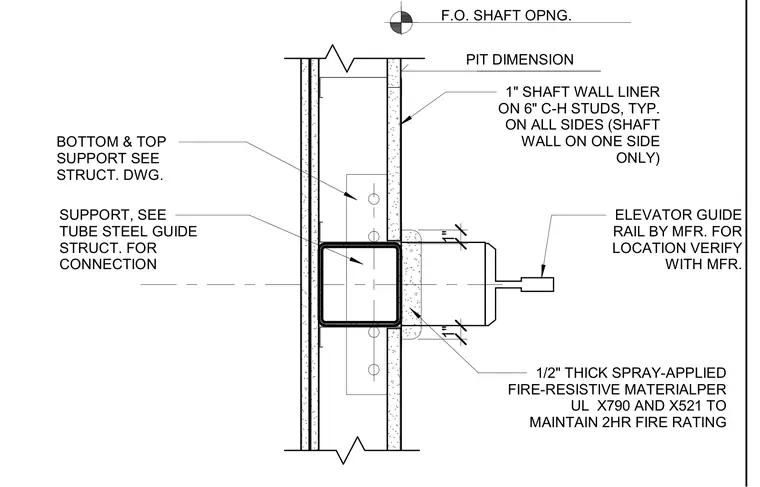

An elevator guide rail support assembly integrates with a shaft wall. A hollow structural section steel tube support detailed on the structural drawings is framed by six-inch C-H studs with one-inch shaft wall liner panels applied typically on all sides. An elevator guide rail provided by the manufacturer mounts to the assembly, with location verified per manufacturer specifications. A half-inch thick spray-applied fire-resistive material meeting UL X790 and X521 standards coats the assembly to maintain a two-hour fire rating.
SUPPORT, SEE TUBE STEEL GUIDE STRUCT. FOR CONNECTION PIT DIMENSION 1" SHAFT WALL LINER ON 6" C-H STUDS, TYP. ON ALL SIDES (SHAFT WALL ON ONE SIDE ONLY) BOTTOM & TOP SUPPORT SEE STRUCT. DWG. ELEVATOR GUIDE RAIL BY MFR. FOR LOCATION VERIFY WITH MFR. F.O. SHAFT OPNG. 1/2" THICK SPRAY-APPLIED FIRE-RESISTIVE MATERIALPER UL X790 AND X521 TO MAINTAIN 2HR FIRE RATING 1" 1"
