Acoustically Insulated Gypsum Soffit

Materials

Elements

About this detail

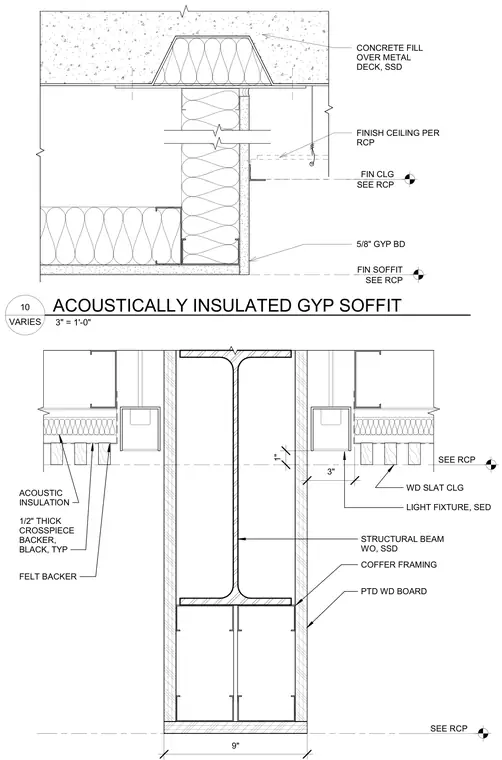

An acoustically insulated gypsum board soffit is constructed below a concrete fill over metal deck floor system. The assembly integrates metal framing studs, 5/8-inch gypsum board, and acoustic insulation within the cavity. Wood slat ceilings and coffer framing coordinate with structural steel beams and recessed light fixtures per reflected ceiling plans.
