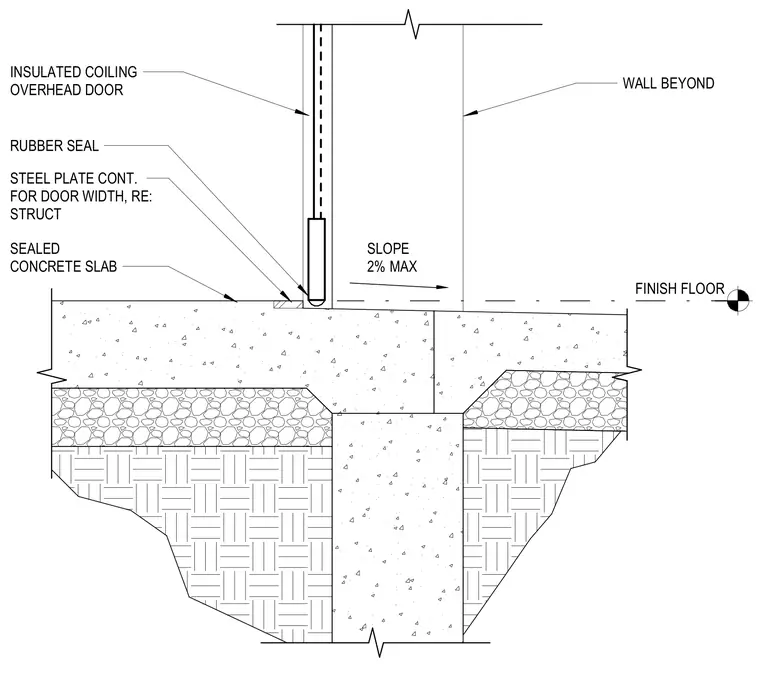

The insulated coiling overhead door terminates at a continuous steel plate embedded into the sealed concrete slab. A rubber seal is attached to the bottom of the door curtain to ensure a tight closure against the threshold. The finish floor is sloped at a maximum of 2% to facilitate drainage away from the door opening. The continuous steel plate is sized per structural drawings and spans the full width of the door opening.
Text on the drawing
INSULATED COILING OVERHEAD DOOR RUBBER SEAL FINISH FLOOR SLOPE 2% MAX SEALED CONCRETE SLAB WALL BEYOND STEEL PLATE CONT. FOR DOOR WIDTH, RE: STRUCT
