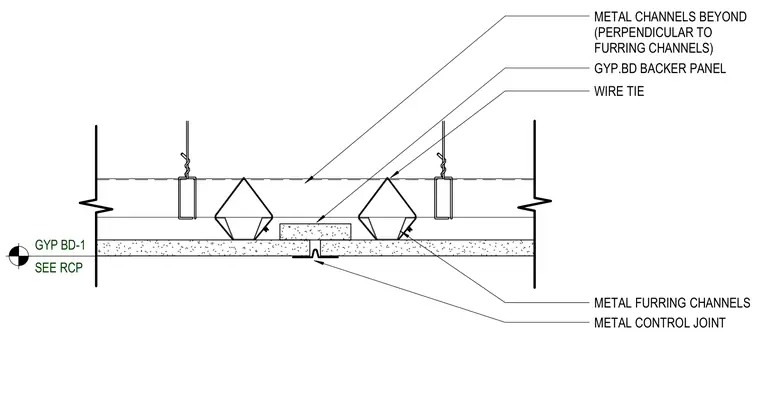

A metal control joint is integrated into the gypsum board ceiling finish with a gypsum board backer panel secured by wire ties. The assembly is supported by metal furring channels running perpendicular to metal channels located beyond.
METAL CHANNELS BEYOND (PERPENDICULAR TO FURRING CHANNELS) GYP.BD BACKER PANEL WIRE TIE METAL CONTROL JOINT METAL FURRING CHANNELS GYP BD-1 SEE RCP
