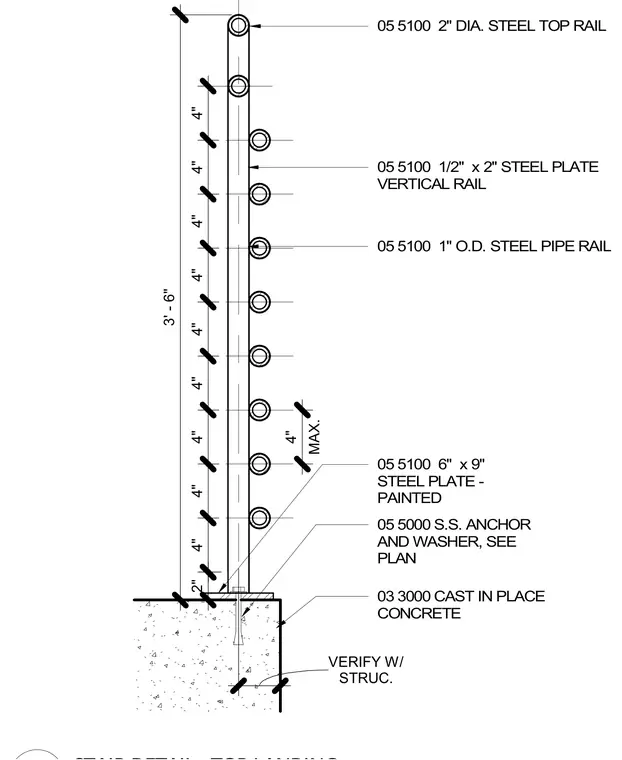

This stair guardrail detail at the top landing features a two-inch diameter steel top rail and one-inch outer diameter steel pipe rails welded to half-inch by two-inch vertical steel plate rails. The vertical post assembly is secured by a six-inch by nine-inch painted steel base plate anchored into cast-in-place structural concrete using stainless steel anchors and washers sized per plan.
05 5100 1/2" x 2" STEEL PLATE VERTICAL RAIL 03 3000 CAST IN PLACE CONCRETE STRUC. VERIFY W/ 05 5100 1" O.D. STEEL PIPE RAIL 2" 4" 4" 4" 4" 4" 4" 4" 4" 4" MAX. 4" 3' - 6" 05 5100 2" DIA. STEEL TOP RAIL 05 5100 6" x 9" STEEL PLATE - PAINTED 05 5000 S.S. ANCHOR AND WASHER, SEE PLAN
