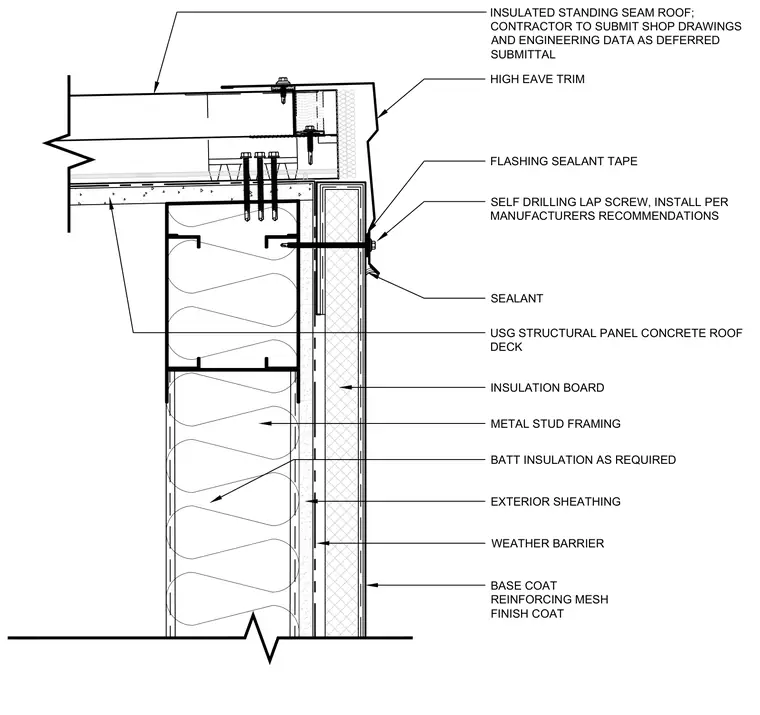

An insulated standing seam roof terminates at a high eave trim over a USG structural panel concrete roof deck. The assembly bears on metal stud framing filled with batt insulation as required and faced with exterior sheathing and a weather barrier. An insulation board with a base coat, reinforcing mesh, and finish coat forms the exterior wall finish. Flashing sealant tape and self-drilling lap screws secure the trim and flashing components per manufacturer recommendations.
INSULATED STANDING SEAM ROOF; CONTRACTOR TO SUBMIT SHOP DRAWINGS AND ENGINEERING DATA AS DEFERRED SUBMITTAL HIGH EAVE TRIM USG STRUCTURAL PANEL CONCRETE ROOF DECK SELF DRILLING LAP SCREW, INSTALL PER MANUFACTURERS RECOMMENDATIONS FLASHING SEALANT TAPE SEALANT WEATHER BARRIER EXTERIOR SHEATHING BATT INSULATION AS REQUIRED METAL STUD FRAMING BASE COAT REINFORCING MESH FINISH COAT INSULATION BOARD
