Architectural · A-6Q6JW

Rake End Fascia at Metal Roofing

Materials

Elements

About this detail

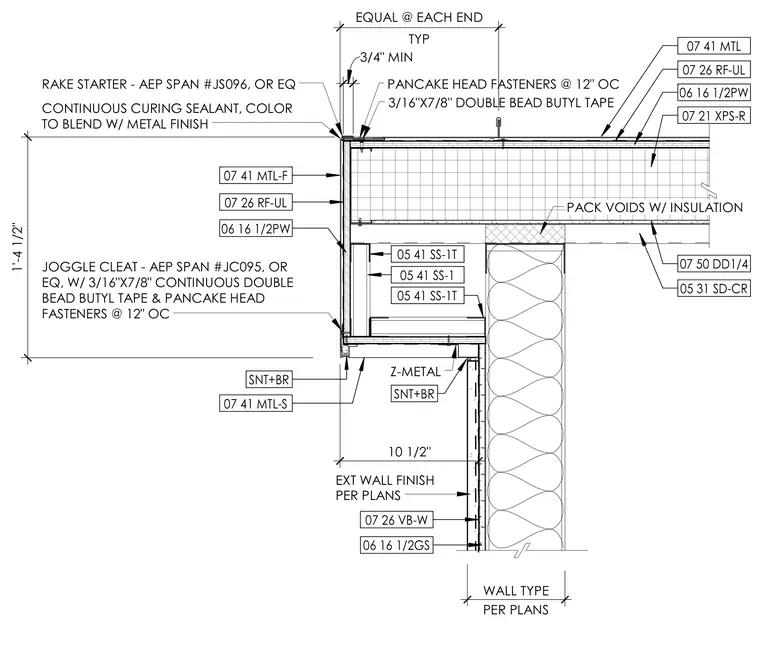

A rake end fascia condition at a metal roof edge transitions down to the exterior wall finish. The assembly features a metal roof deck supported by cold-formed steel framing, with continuous insulation packed into the voids at the wall junction. A rake starter and z-metal joggle cleat secure the metal fascia panels with pancake head fasteners spaced twelve inches on center and continuous double-bead butyl tape. Continuous curing sealant is applied at the top corner to blend with the metal finish, while exterior wall framing and sheathing tie into the lower transition with a soffit metal component.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
