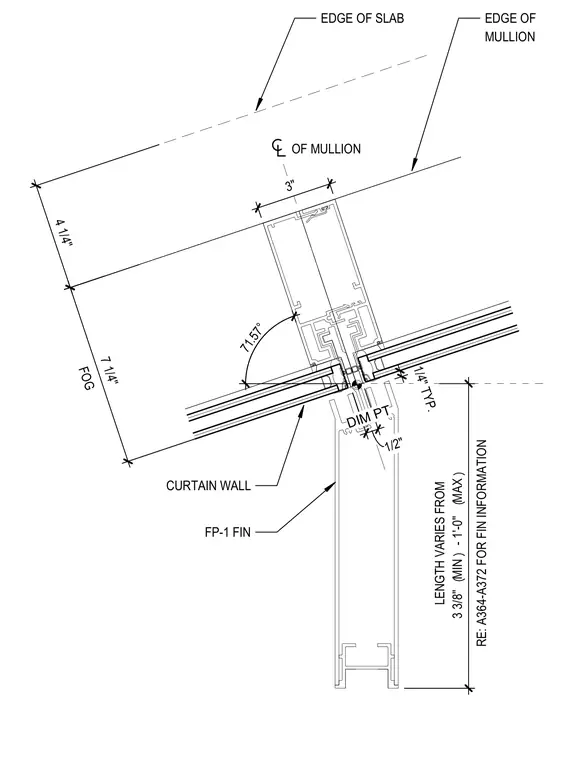

Exterior curtain wall mullion and FP-1 architectural fin geometric layout relative to the edge of slab. A 7-1/4 inch dimension extends from the slab edge to the centerline of the mullion, with a 3-inch offset to the edge of the mullion and a 4-1/4 inch dimension to the slab edge. An exterior fin with a 71.57 degree angle connects to the glazing line, having a variable length ranging from 3-3/8 inches minimum to 1 foot maximum. Additional notes direct the builder to sections A364 and A372 for complete fin information.
OF MULLION F O G 7 1 / 4 " EDGE OF SLAB 1 / 2 " 4 1 / 4 " DIM PT 7 1 . 5 7 ° 3 " EDGE OF MULLION 1 / 4 " T Y P . R E : A 3 6 4 - A 3 7 2 F O R F I N I N F O R M A T I O N L E N G T H V A R I E S F R O M 3 3 / 8 " ( M I N ) - 1 ' - 0 " ( M A X ) CURTAIN WALL FP-1 FIN
