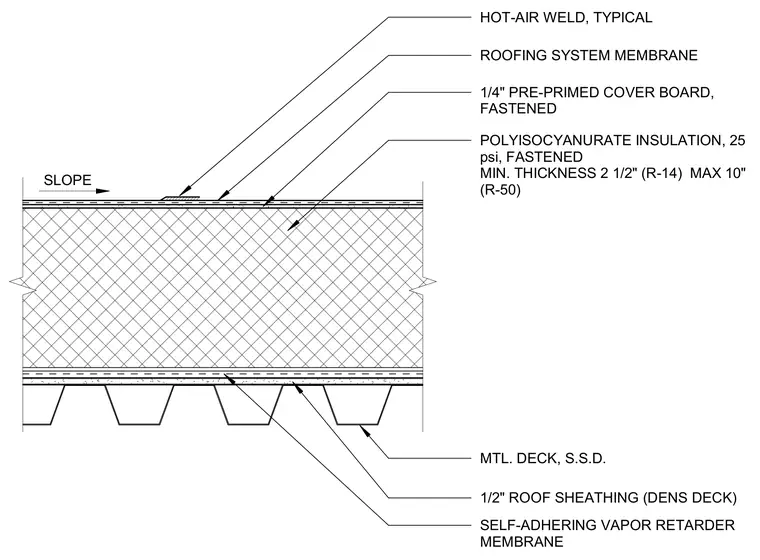

A self-adhering vapor retarder membrane is applied directly over a one-half-inch Dens Deck roof sheathing supported by a structural metal deck. Fastened polyisocyanurate insulation, rated at twenty-five psi with a thickness varying from two and one-half inches to ten inches, is installed above the sheathing. A one-quarter-inch pre-primed cover board is mechanically fastened over the insulation layer. The roof assembly is capped with a roofing system membrane joined by typical hot-air welds along the seams.
MTL. DECK, S.S.D. ROOFING SYSTEM MEMBRANE 1/4" PRE-PRIMED COVER BOARD, FASTENED POLYISOCYANURATE INSULATION, 25 psi, FASTENED MIN. THICKNESS 2 1/2" (R-14) MAX 10" (R-50) 1/2" ROOF SHEATHING (DENS DECK) SELF-ADHERING VAPOR RETARDER MEMBRANE SLOPE HOT-AIR WELD, TYPICAL
