Architectural · A-6PNPG

Connector Plates and Floor Curb Wall Detail

Materials

Elements

Floors / Slabs Site / Paving Reinforcing

About this detail

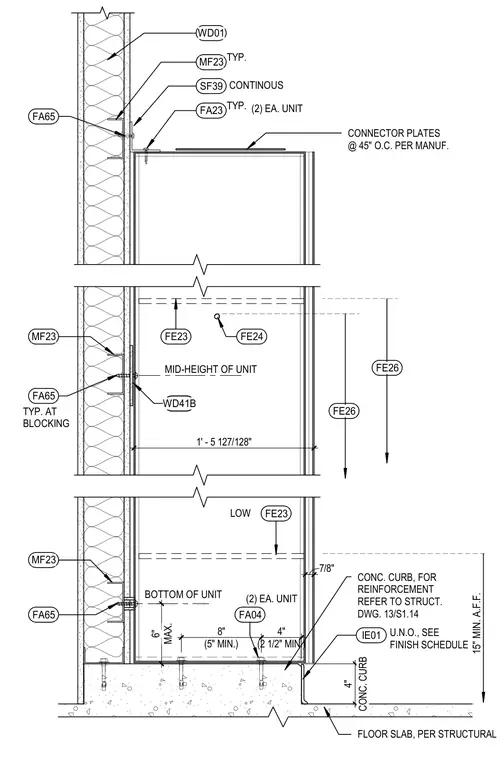

This wall section details the connection of modular units to a concrete curb and timber or metal framing. The assembly features a four-inch concrete curb anchored to the floor slab, with connector plates spaced at forty-five inches on center per the manufacturer's specifications. Fasteners and continuous framing elements secure the vertical unit at the bottom, mid-height, and top locations. Blocking supports intermediate fasteners, maintaining minimum clearances above the finished floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
