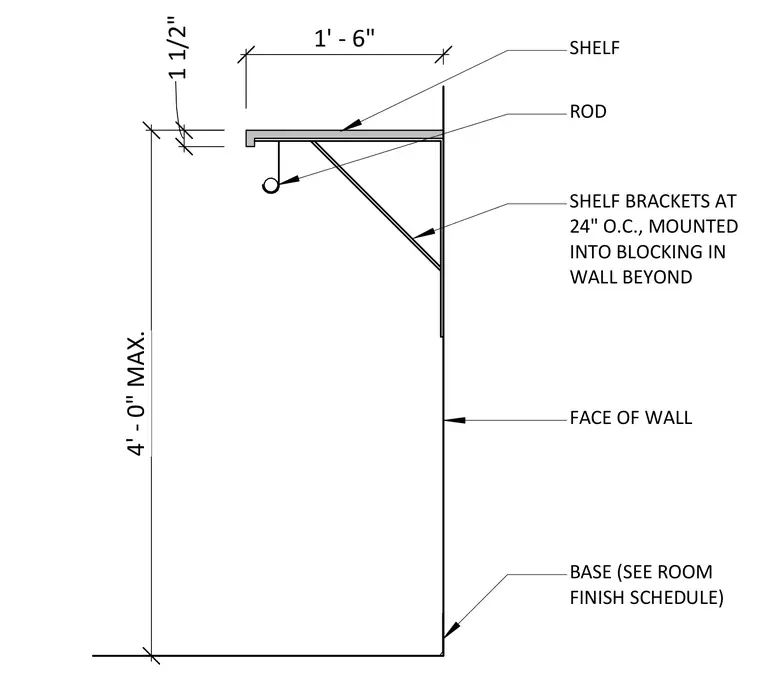

A one-foot-six-inch deep shelf is supported by shelf brackets spaced at twenty-four inches on center and mounted into blocking in the wall beyond. A hanging rod is suspended one and one-half inches below the underside of the shelf. The shelf assembly is positioned at a maximum height of four feet zero inches above the base. The base trim is specified in the room finish schedule.
1' - 6" 4' - 0" MAX. 1 1/2" BASE (SEE ROOM FINISH SCHEDULE) SHELF BRACKETS AT 24" O.C., MOUNTED INTO BLOCKING IN WALL BEYOND SHELF FACE OF WALL ROD
