Architectural · A-6PF4A

Metal Stair Landing and Exterior Wall Junction

Materials

Concrete Steel Timber / Wood Masonry / CMU Stone Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Facades / Cladding Stairs Floors / Slabs Decks Waterproofing / Flashing Insulation Reinforcing

Connections

HSS Connection

About this detail

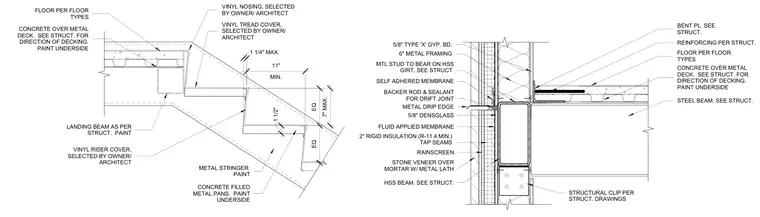

A metal stair landing connects to a framed exterior wall assembly. The stair features concrete-filled metal pans with vinyl tread covers, vinyl riser covers, and a 1 1/2-inch vinyl nosing, supported by a metal stringer and landing beam. The exterior wall consists of stone veneer over mortar with metal lath, a rainscreen, 2 inches of rigid insulation with taped seams, a fluid-applied membrane, 5/8-inch DensGlass, and 6-inch metal framing with 5/8-inch Type X gypsum board on the interior side. A hollow structural section beam ties into the structural clip, while a drift joint with backer rod and sealant is provided beneath a bent plate with a metal drip edge and self-adhered membrane.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
