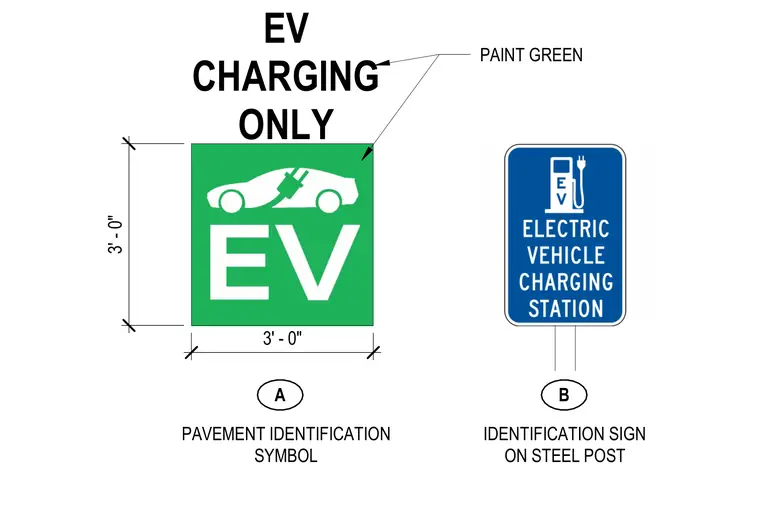

An electric vehicle charging pavement identification symbol is laid out as a square measuring three feet by three feet with green painted infill. An adjacent identification sign is mounted on a steel post. Text labeling above the pavement symbol reads EV CHARGING ONLY.
PAVEMENT IDENTIFICATION SYMBOL A IDENTIFICATION SIGN ON STEEL POST B 3' - 0" 3' - 0" EV CHARGING ONLY PAINT GREEN
