A seven inch thick channel construction forms the two piece panel utilizing sheet metal skins and sound deadening materials bolted together in the field. Flush pull handles are incorporated into the assembly. A four wire fail safe reversing edge is included for installation by others.

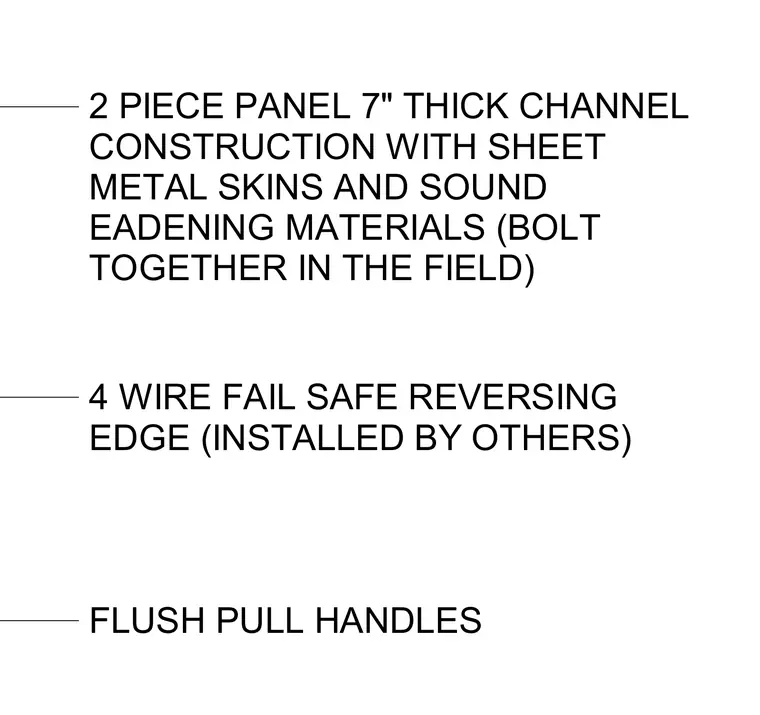

4 WIRE FAIL SAFE REVERSING EDGE (INSTALLED BY OTHERS) FLUSH PULL HANDLES 2 PIECE PANEL 7" THICK CHANNEL CONSTRUCTION WITH SHEET METAL SKINS AND SOUND EADENING MATERIALS (BOLT TOGETHER IN THE FIELD)
