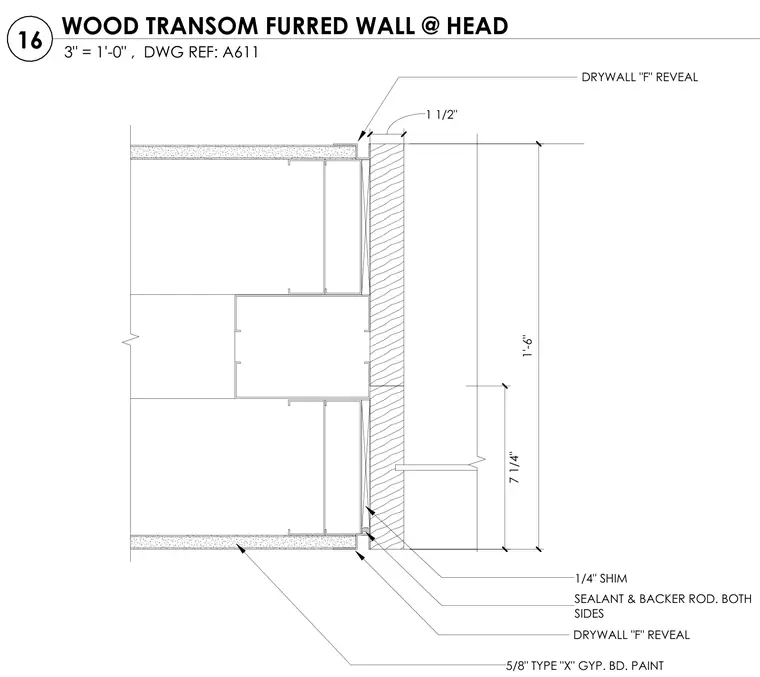

A wood transom furred wall head junction features five-eighths inch Type X gypsum board with paint finish. Drywall F reveals are installed at the transitions, accompanied by one-quarter inch shims and sealant with backer rod on both sides. Dimensions indicate a one-foot-six-inch transom height with a seven-and-one-quarter-inch segment below.
5/8" TYPE "X" GYP. BD. PAINT SEALANT & BACKER ROD. BOTH SIDES 1/4" SHIM DRYWALL "F" REVEAL DRYWALL "F" REVEAL 7 1/4" 1 1/2" 1'-6" 3" = 1'-0" , DWG REF: A611 16 WOOD TRANSOM FURRED WALL @ HEAD
