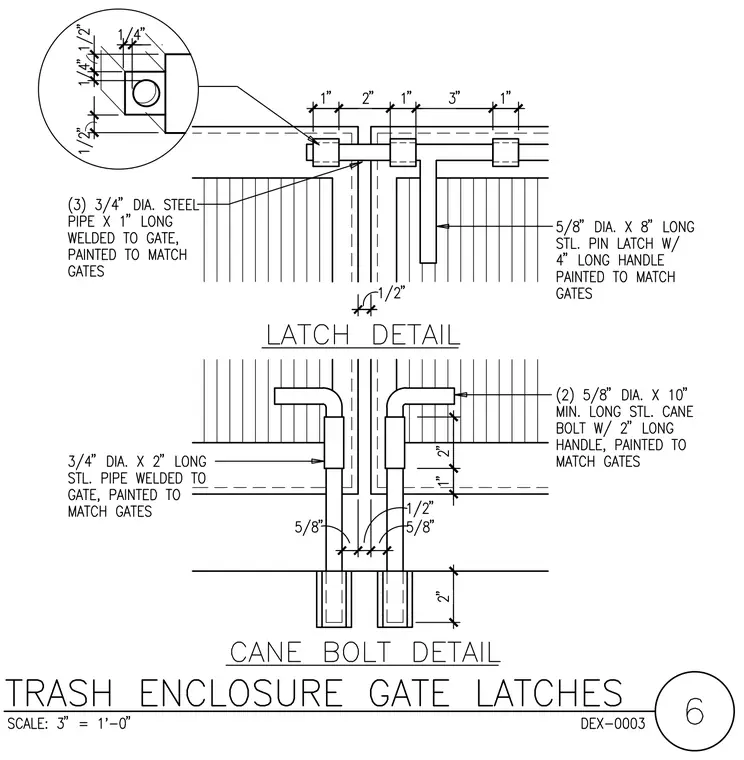

Trash enclosure gate hardware includes a top pin latch and bottom cane bolts for security. The top latch assembly features three three-quarter-inch diameter steel pipes one inch long welded to the gate with a five-eighths-inch diameter by eight-inch long steel pin latch with a four-inch long handle. The bottom cane bolt assembly consists of three-quarter-inch diameter by two-inch long steel pipes welded to the gate with two five-eighths-inch diameter by ten-inch long minimum steel cane bolts featuring two-inch long handles. All components are painted to match the gates.
