Level Maneuvering Clearance at Doors

Elements

About this detail

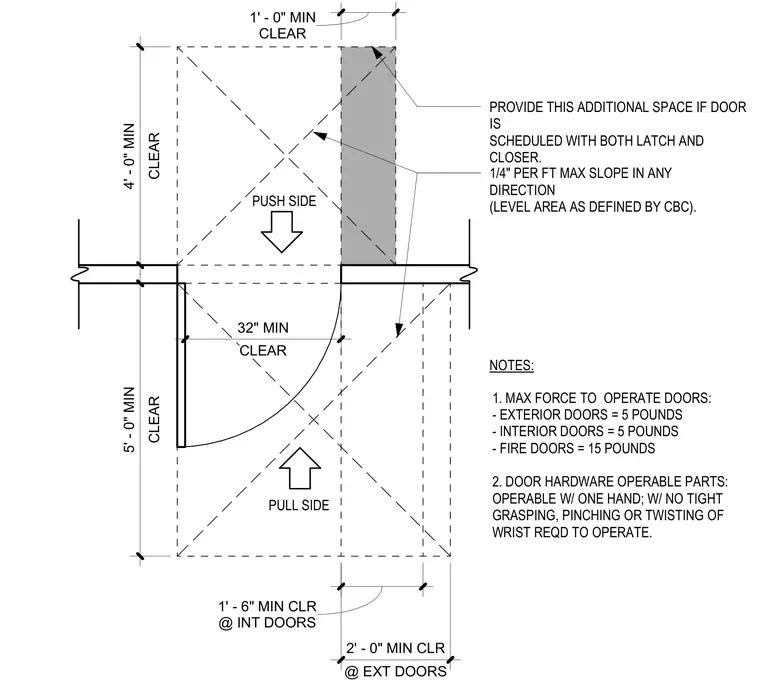

Level maneuvering clearances and approach dimensions for doors per accessibility standards. The push side requires a minimum four-foot clear depth with a shaded additional space when scheduled with both latch and closer, while the pull side requires a minimum five-foot clear depth. Side clearances vary with a minimum of thirty-two inches clear width for interior doors, one foot six inches minimum clear at interior door approaches, and two feet minimum clear at exterior door approaches. Maximum floor slope is limited to one-quarter inch per foot maximum in any direction within the level area. Notes specify maximum operating force limits of five pounds for exterior and interior doors and fifteen pounds for fire doors, along with hardware operation requirements.
