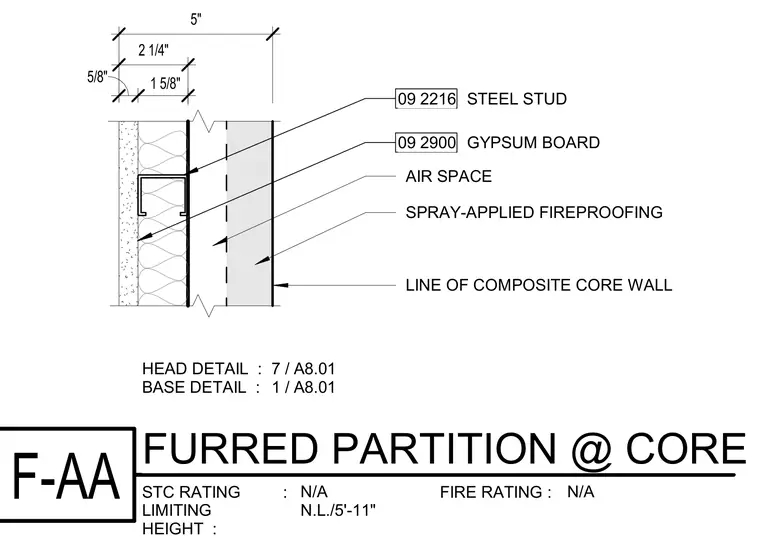

This interior partition detail shows a furred steel stud assembly erected against a composite core wall. The construction consists of five-eighths-inch gypsum board mounted on steel studs, creating an air space between the drywall and the spray-applied fireproofing on the structural core wall. Total assembly depth measures five inches, with a one-and-five-eighths-inch stud dimension.
5/8" 1 5/8" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : F-AA FURRED PARTITION @ CORE N/A N/A N.L./5'-11" 7 / A8.01 1 / A8.01 09 2900 GYPSUM BOARD 09 2216 STEEL STUD 2 1/4" 5" SPRAY-APPLIED FIREPROOFING AIR SPACE LINE OF COMPOSITE CORE WALL
