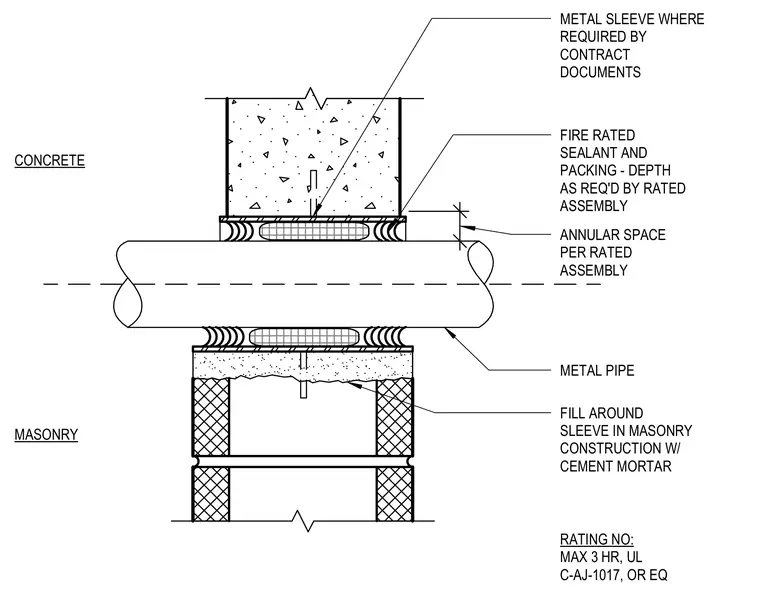

A metal pipe passes through a concrete or concrete masonry unit wall assembly utilizing a metal sleeve where required by contract documents. An annular space is maintained per the rated assembly, filled with fire-rated sealant and packing to the depth required by the rated assembly. For masonry construction, the gap around the sleeve is filled with cement mortar. The penetration achieves a maximum three-hour rating following UL C-AJ-1017 or equivalent standards.
METAL SLEEVE WHERE REQUIRED BY CONTRACT DOCUMENTS FIRE RATED SEALANT AND PACKING - DEPTH AS REQ'D BY RATED ASSEMBLY ANNULAR SPACE PER RATED ASSEMBLY METAL PIPE FILL AROUND SLEEVE IN MASONRY CONSTRUCTION W/ CEMENT MORTAR RATING NO: MAX 3 HR, UL C-AJ-1017, OR EQ CONCRETE MASONRY
