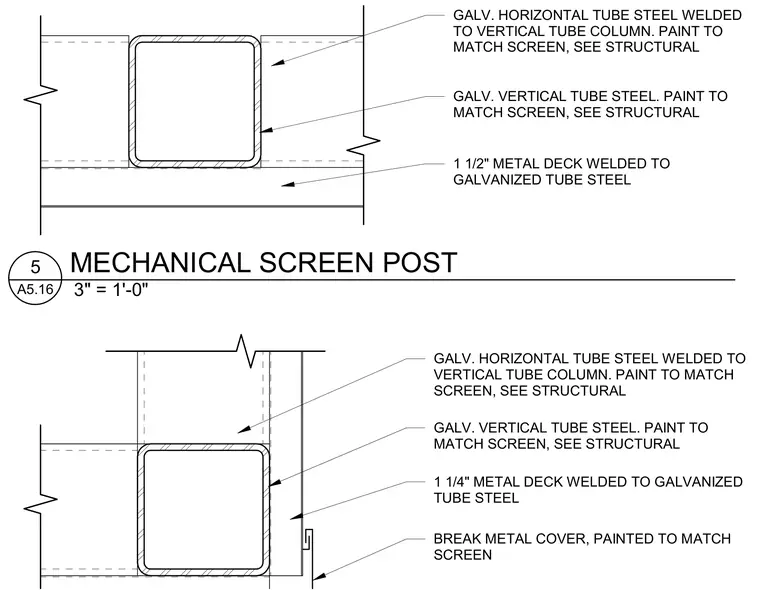

A galvanized vertical tube steel column supports galvanized horizontal tube steel members welded directly to the column, with all exposed surfaces painted to match the mechanical screen. A metal deck is welded to the galvanized tube steel framing. A painted break metal cover wraps the corner assembly to conceal the framing.
GALV. VERTICAL TUBE STEEL. PAINT TO MATCH SCREEN, SEE STRUCTURAL GALV. HORIZONTAL TUBE STEEL WELDED TO VERTICAL TUBE COLUMN. PAINT TO MATCH SCREEN, SEE STRUCTURAL 1 1/4" METAL DECK WELDED TO GALVANIZED TUBE STEEL BREAK METAL COVER, PAINTED TO MATCH SCREEN GALV. VERTICAL TUBE STEEL. PAINT TO MATCH SCREEN, SEE STRUCTURAL GALV. HORIZONTAL TUBE STEEL WELDED TO VERTICAL TUBE COLUMN. PAINT TO MATCH SCREEN, SEE STRUCTURAL 1 1/2" METAL DECK WELDED TO GALVANIZED TUBE STEEL 3" = 1'-0" A5.16 5 MECHANICAL SCREEN POST
