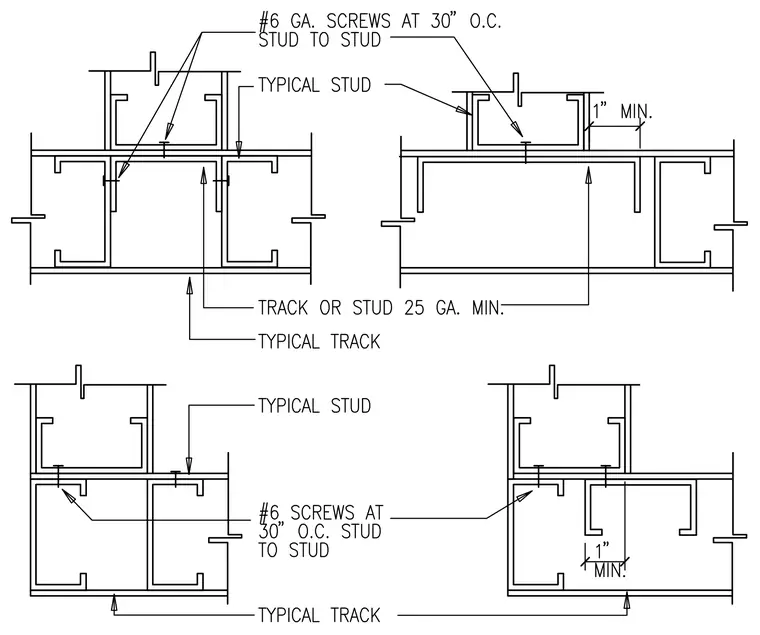

These cold-formed steel framing details show typical stud-to-stud and stud-to-track intersections configured in various layout conditions. Members are constructed using typical studs and a twenty-five gauge minimum track or stud. Connections are made using number six gauge screws spaced at thirty inches on center for stud-to-stud attachment, maintaining a one-inch minimum clearance where indicated.
