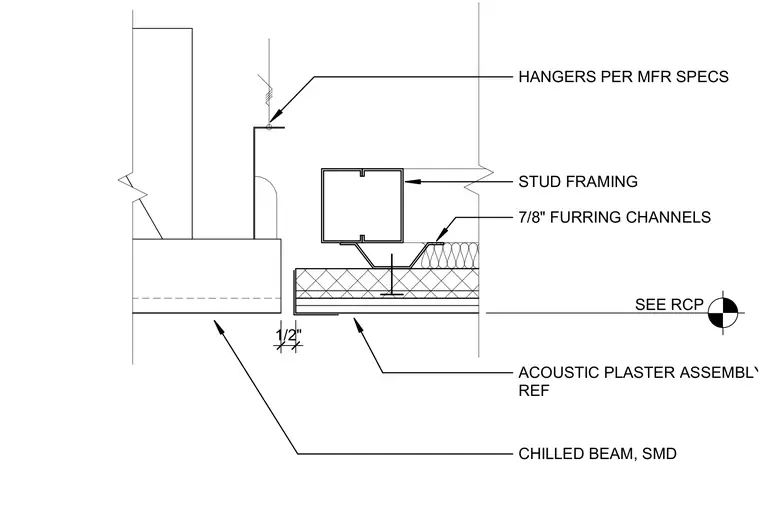

An acoustic plaster assembly is integrated with a chilled beam and supported by seven-eighths-inch furring channels and stud framing. Hangers are installed per manufacturer specifications to support the ceiling framework. A half-inch joint separates the acoustic plaster finish from the chilled beam unit.
SEE RCP ACOUSTIC PLASTER ASSEMBLY, REF 7/8" FURRING CHANNELS STUD FRAMING 1/2" CHILLED BEAM, SMD HANGERS PER MFR SPECS
