Architectural · A-6MYYY

Exterior Wall Assembly with HSS Column

Materials

Steel Cold-formed Steel Timber / Wood Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Walls Insulation Connections / Plates

Connections

Base Plate / Anchorage HSS Connection

About this detail

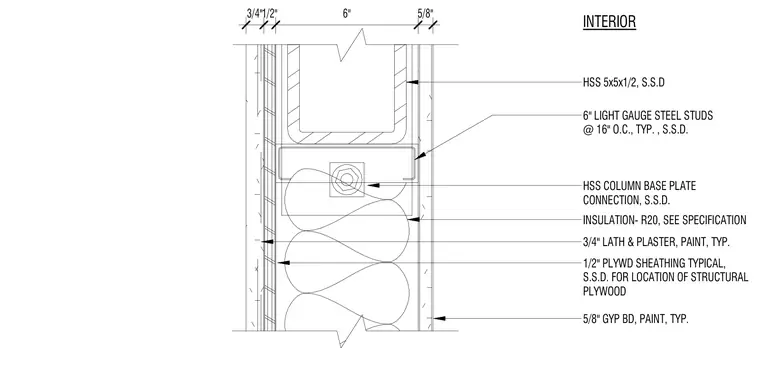

An exterior wall assembly integrates a hollow structural section column measuring five by five inches with a half-inch thickness, flanked by six-inch light gauge steel studs spaced at sixteen inches on center. The exterior features a half-inch plywood sheathing layer topped by three-quarters of an inch of lath and plaster with a paint finish. The interior side is finished with five-eighths-inch gypsum board and paint. Cavity insulation is rated at R-20 per project specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
