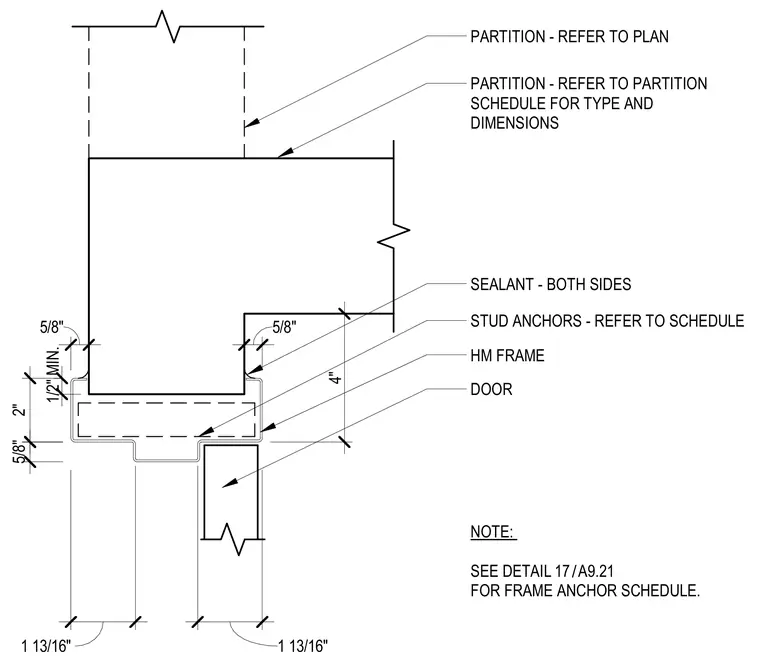

The hollow metal frame installs at the partition wall with stud anchors sized per the partition schedule. Sealant is applied to both sides of the frame junction. Dimensional clearances include a 5/8 inch reveal and a 1/2 inch minimum return. The door leaf seats within the hollow metal frame profile.
PARTITION - REFER TO PLAN PARTITION - REFER TO PARTITION SCHEDULE FOR TYPE AND DIMENSIONS SEALANT - BOTH SIDES STUD ANCHORS - REFER TO SCHEDULE HM FRAME DOOR 1 13/16" 1 13/16" 2" 5/8" NOTE: SEE DETAIL FOR FRAME ANCHOR SCHEDULE. 5/8" 5/8" 1/2" MIN. 4" / 17 A9.21
