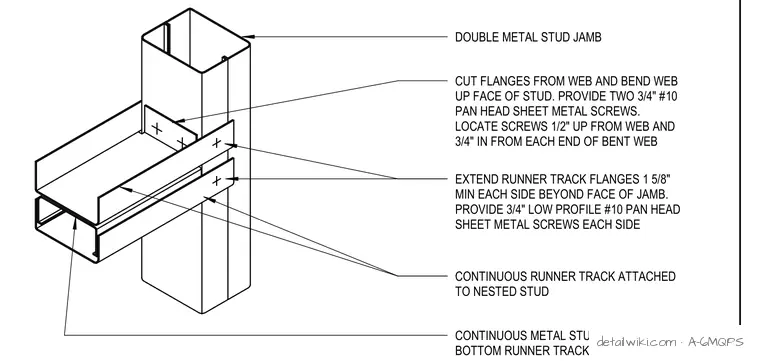

This assembly details a double metal stud jamb for door openings between three feet six inches and eight feet wide. A continuous runner track is nested into the top of the jamb studs, with track flanges extended one and five-eighths inches minimum beyond the face of the jamb on each side and secured with three-quarter-inch low-profile number ten pan head sheet metal screws. The runner track web is cut and bent up against the face of the stud, secured with two three-quarter-inch number ten pan head sheet metal screws located one-half inch up from the web and three-quarters of an inch in from each end of the bent web. A continuous metal stud is nested into the bottom runner track to complete the head assembly.
Text on the drawing

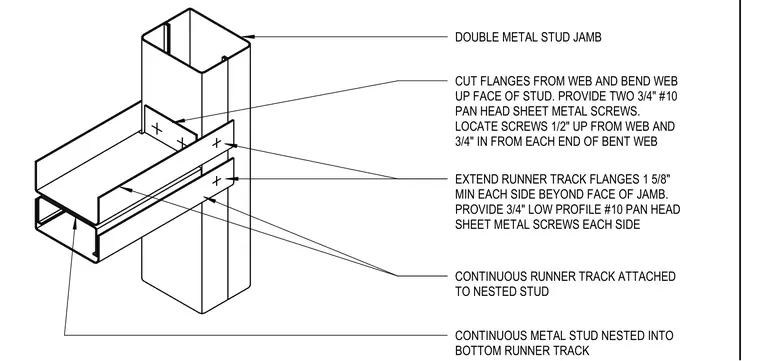

B JAMB AT TYPE 2 HEAD - OPENINGS 3'-6" TO 8'-0" WIDE DOUBLE METAL STUD JAMB CONTINUOUS RUNNER TRACK ATTACHED TO NESTED STUD EXTEND RUNNER TRACK FLANGES 1 5/8" MIN EACH SIDE BEYOND FACE OF JAMB. PROVIDE 3/4" LOW PROFILE #10 PAN HEAD SHEET METAL SCREWS EACH SIDE CUT FLANGES FROM WEB AND BEND WEB UP FACE OF STUD. PROVIDE TWO 3/4" #10 PAN HEAD SHEET METAL SCREWS. LOCATE SCREWS 1/2" UP FROM WEB AND 3/4" IN FROM EACH END OF BENT WEB CONTINUOUS METAL STUD NESTED INTO BOTTOM RUNNER TRACK
