Architectural · A-6MM5T

Roller Shade Pocket Detail at Masonry Wall

Materials

Steel Masonry / CMU

Elements

Walls Doors Windows Anchors / Embeds

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

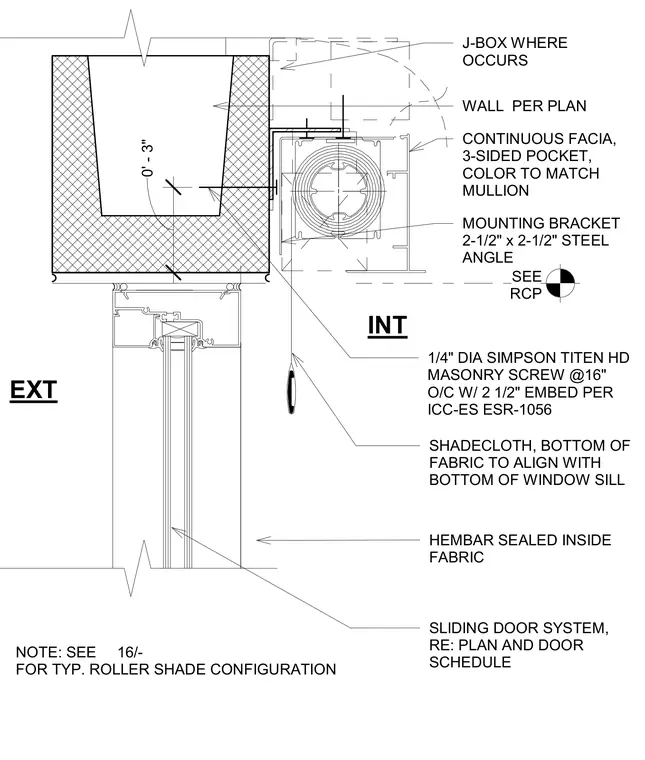

A continuous steel fascia forms a three-sided pocket enclosing the roller shade mechanism, secured to the wall per plan using a two-and-a-half by two-and-a-half-inch steel angle mounting bracket. A one-quarter-inch diameter Simpson Titen HD masonry screw spaced at sixteen inches on center with a two-and-a-half-inch embedment anchors the bracket to the masonry wall. The shadecloth extends downward with its bottom edge aligned with the window sill, featuring a hembar sealed inside the fabric. A junction box is installed nearby where required for electrical connections, and the entire assembly interfaces with the adjacent sliding door system.
