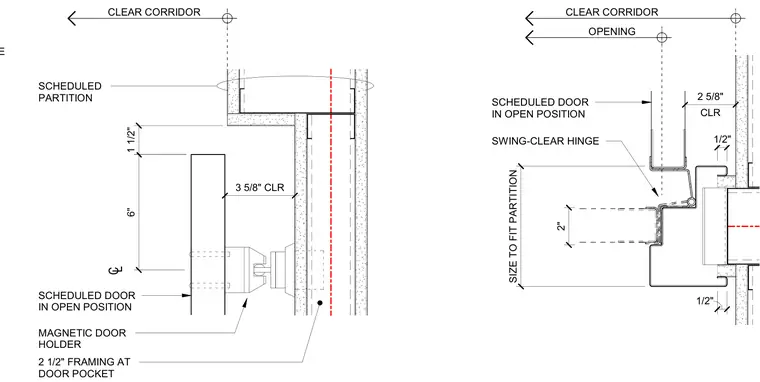

The assembly details a dual egress door frame set within a scheduled partition and 2 1/2-inch framing at the door pocket. A magnetic door holder is mounted to secure the scheduled door in the open position, providing a 3 5/8-inch clearance from the face of the partition. Swing-clear hinges are incorporated into the door frame with specific dimensional clearances of 2 inches and 1/2 inch at the frame stops to maintain a clear corridor opening.
DOOR FRAME PER SCHEDULED ABOVE CLEAR CORRIDOR MAGNETIC DOOR HOLDER SCHEDULED DOOR IN OPEN POSITION 6" 3 5/8" CLR SCHEDULED PARTITION 1 1/2" 2 1/2" FRAMING AT DOOR POCKET CL CLEAR CORRIDOR OPENING CLR 2 5/8" SIZE TO FIT PARTITION SCHEDULED DOOR IN OPEN POSITION SWING-CLEAR HINGE 1/2" 2" 1/2"
