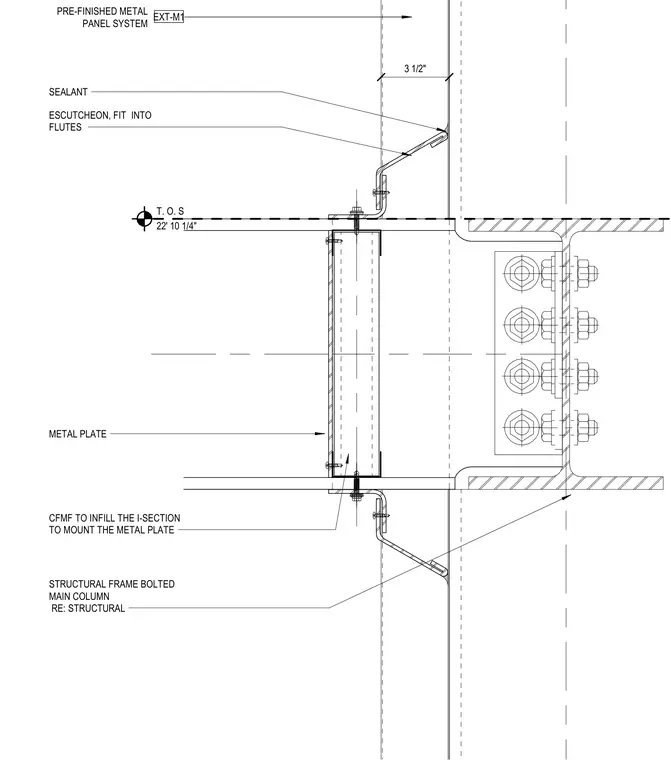

The structural frame consists of a bolted main column receiving a cold-formed metal framing infilled inside the I-section to mount a metal plate. A pre-finished metal panel system is installed over the exterior with an escutcheon fitted into the flutes and sealed in place. A 3-1/2 inch dimension dictates the spacing of the panel system relative to the structural column.
22' 10 1/4" T. O. S ESCUTCHEON, FIT INTO FLUTES SEALANT 3 1/2" STRUCTURAL FRAME BOLTED MAIN COLUMN RE: STRUCTURAL CFMF TO INFILL THE I-SECTION TO MOUNT THE METAL PLATE METAL PLATE PRE-FINISHED METAL PANEL SYSTEM EXT-M1
