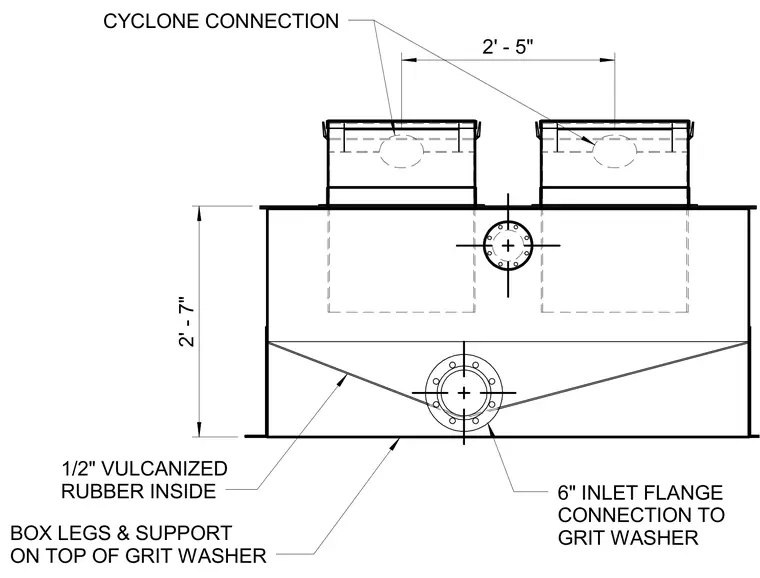

The assembly features a collection box supported on top of a grit washer by box legs and structural support. The interior is lined with a half-inch vulcanized rubber layer. Inlet connections utilize a six-inch flanged connection to the grit washer, alongside top cyclone connections spaced two feet five inches apart. The total height of the box section measures two feet seven inches.
2' - 5" 2' - 7" BOX LEGS & SUPPORT ON TOP OF GRIT WASHER 1/2" VULCANIZED RUBBER INSIDE CYCLONE CONNECTION 6" INLET FLANGE CONNECTION TO GRIT WASHER
