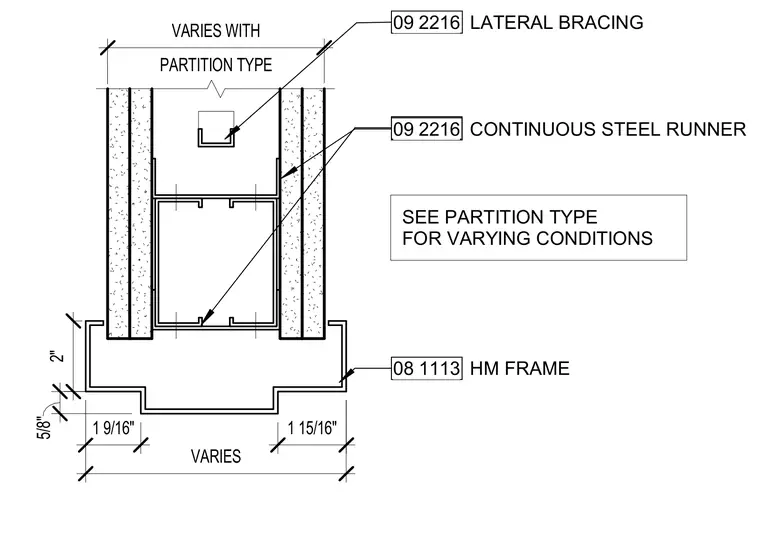

The head of a hollow metal door frame is set within a framed partition. A continuous steel runner is fastened at the top of the frame assembly, with lateral bracing positioned within the partition cavity. Dimensions indicate variable clearances, including a two-inch vertical dimension and a five-eighths-inch offset at the frame profile. Partition wall finishes and varying conditions are noted to coordinate per the architectural partition type schedules.
1 15/16" 1 9/16" VARIES PARTITION TYPE VARIES WITH 2" 5/8" 09 2216 LATERAL BRACING 09 2216 CONTINUOUS STEEL RUNNER 09 2216 CONTINUOUS STEEL RUNNER SEE PARTITION TYPE FOR VARYING CONDITIONS 08 1113 HM FRAME
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
