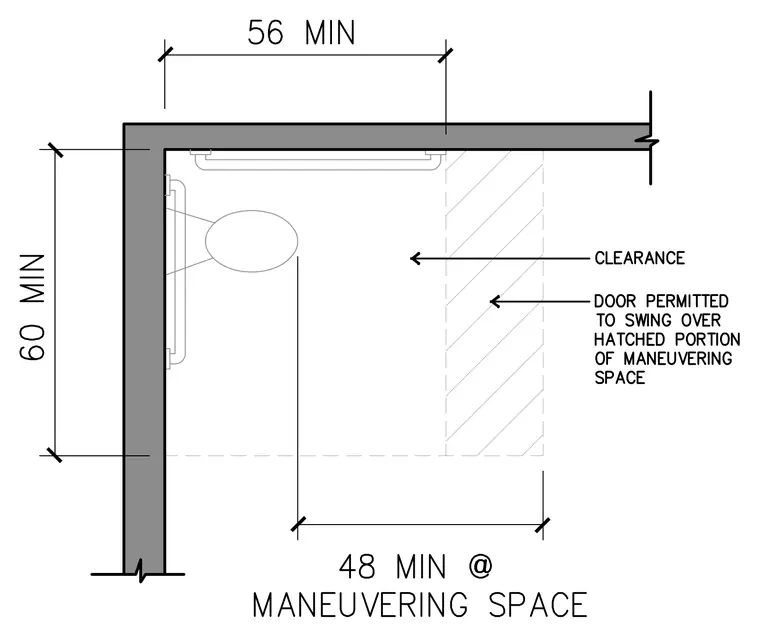

An accessible water closet stall layout requires a minimum clear dimension of fifty-six inches along the back wall and sixty inches along the side wall. The maneuvering space requires a minimum of forty-eight inches with a hatched portion where a door is permitted to swing. Grab bars are mounted along the rear and side walls adjacent to the water closet fixture.
