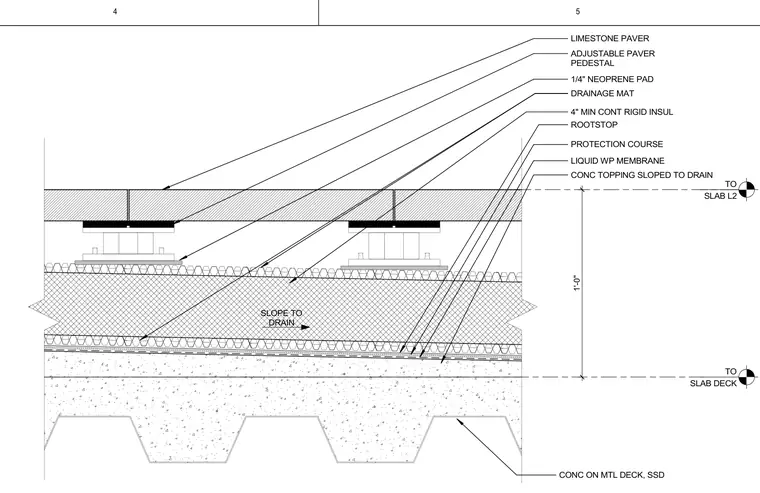

Limestone pavers rest on adjustable paver pedestals with quarter-inch neoprene pads over a drainage mat, four inches of continuous rigid insulation, rootstop, protection course, and liquid waterproofing membrane. The concrete topping is sloped to drain over a structural concrete slab on metal deck. The assembly provides drainage and thermal insulation for a level two outdoor terrace.
SLOPE TO DRAIN TO SLAB L2 TO SLAB DECK CONC TOPPING SLOPED TO DRAIN ADJUSTABLE PAVER PEDESTAL 4" MIN CONT RIGID INSUL PROTECTION COURSE LIMESTONE PAVER LIQUID WP MEMBRANE ROOTSTOP DRAINAGE MAT 1/4" NEOPRENE PAD CONC ON MTL DECK, SSD 1'-0" 4 5
