Architectural · A-6KQM9

Suspended Ceiling Edge Condition at Wall

Materials

Elements

About this detail

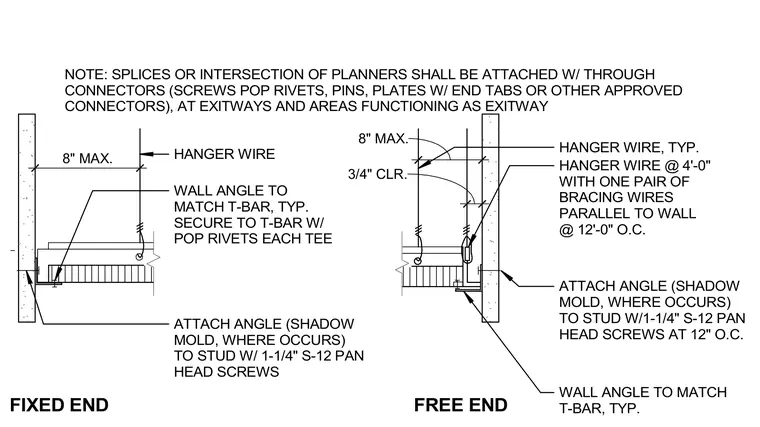

The ceiling perimeter is detailed with a wall angle or shadow mold secured to the stud using one-and-one-quarter-inch S-twelve pan head screws spaced at twelve inches on center. The ceiling grid tee is secured to the wall angle with pop rivets at each tee. Hanger wires are positioned at a maximum of eight inches from the wall, spaced at four feet on center. Seismic bracing wires are provided in pairs parallel to the wall at twelve feet on center with a three-quarter-inch clearance. Splices and intersections of planners are mechanically attached with through connectors such as screws, pop rivets, pins, or plates with end tabs at exitways.
