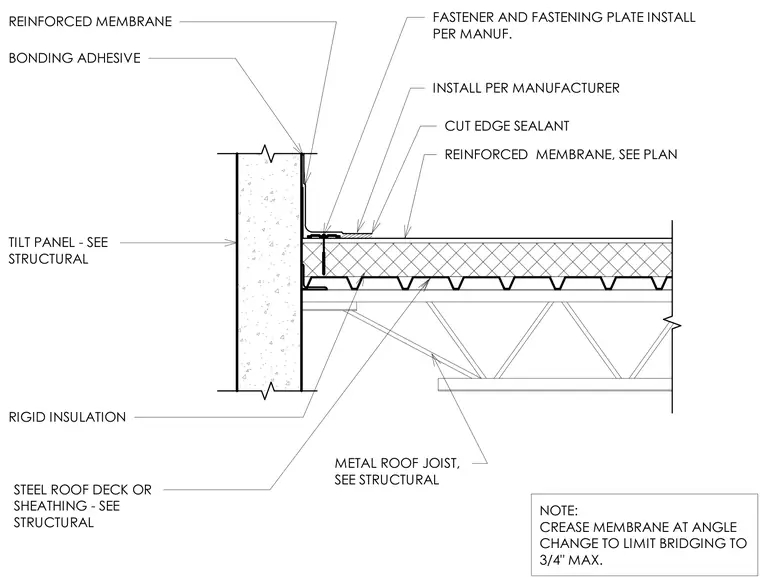

A reinforced roof membrane transitions up the concrete tilt-up wall panel, secured with bonding adhesive, fasteners, and fastening plates installed per manufacturer specifications. A cut edge sealant is applied at the membrane termination. The roof assembly consists of rigid insulation over a steel roof deck or sheathing, supported by a metal roof joist. The membrane is creased at the angle change to limit bridging to a maximum of three-quarters of an inch.
METAL ROOF JOIST, SEE STRUCTURAL TILT PANEL - SEE STRUCTURAL STEEL ROOF DECK OR SHEATHING - SEE STRUCTURAL NOTE: CREASE MEMBRANE AT ANGLE CHANGE TO LIMIT BRIDGING TO 3/4" MAX. BONDING ADHESIVE REINFORCED MEMBRANE FASTENER AND FASTENING PLATE INSTALL PER MANUF. INSTALL PER MANUFACTURER CUT EDGE SEALANT REINFORCED MEMBRANE, SEE PLAN RIGID INSULATION
