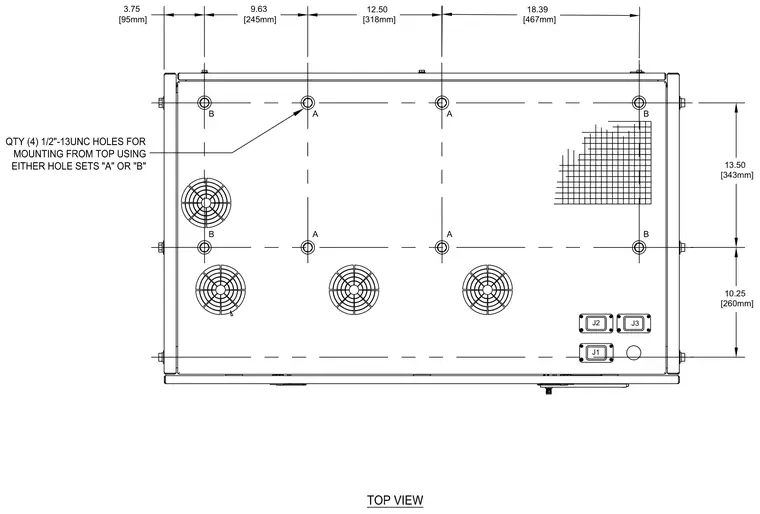

This top view layout provides mounting dimensions and hole locations for equipment installation. Four half-inch-thirteen unified national coarse holes are provided for top mounting, utilizing either hole set designated as A or B. Overall dimensions measure eighteen inches by thirteen inches with detailed spacing callouts for the mounting hole patterns, ventilation fans, and electrical connection ports J1, J2, and J3.
TOP VIEW 3.75 9.63 [95mm] B QTY (4) 1/2"-13UNC HOLES FOR MOUNTING FROM TOP USING EITHER HOLE SETS "A" OR "B" 13.50 [343mm] B A A B A A B [245mm] 12.50 [318mm] 18.39 [467mm] 10.25 [260mm] J2 J1 J3
