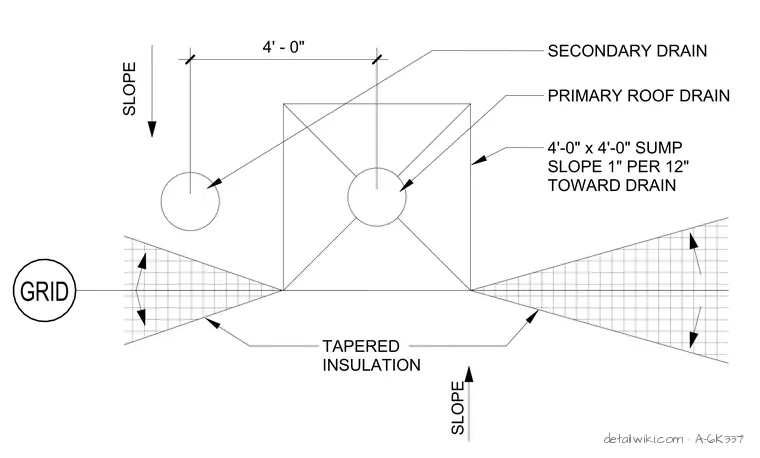

Primary roof drain and adjacent secondary drain positioned within a four-foot by four-foot depressed sump. The sump area features a slope of one inch per twelve inches toward the primary drain. Tapered insulation transitions the roof surface to the sump perimeter. The secondary drain is located four feet on-center from the primary drain, with directional arrows indicating the overall roof slope.
