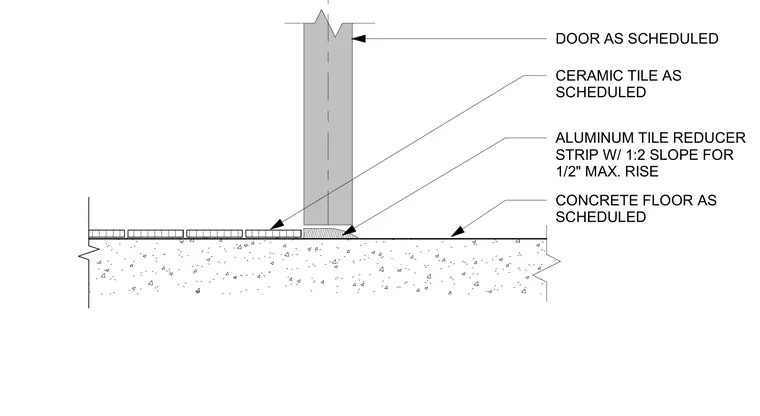

An aluminum tile reducer strip with a one-to-two slope accommodates a maximum one-half-inch rise between finished flooring surfaces. The ceramic tile and concrete floor are installed per schedule. A door is positioned above the transition assembly.
ALUMINUM TILE REDUCER STRIP W/ 1:2 SLOPE FOR 1/2" MAX. RISE DOOR AS SCHEDULED CERAMIC TILE AS SCHEDULED CONCRETE FLOOR AS SCHEDULED
