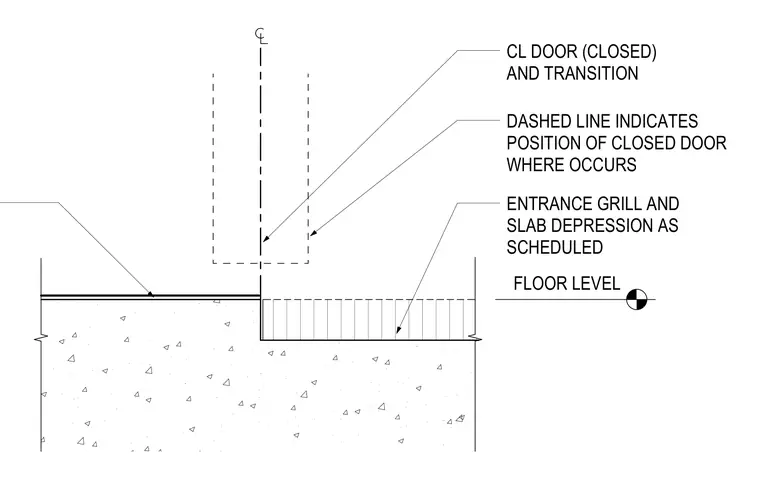

This architectural detail shows an entrance grill and slab depression set into a concrete floor slab at a door transition. Dashed lines indicate the centerline and position of the closed door where applicable. A floor level marker establishes the finished floor elevation adjacent to the recessed entrance grill.
ENTRANCE GRILL AND SLAB DEPRESSION AS SCHEDULED FLOOR LEVEL CL DOOR (CLOSED) AND TRANSITION DASHED LINE INDICATES POSITION OF CLOSED DOOR WHERE OCCURS
