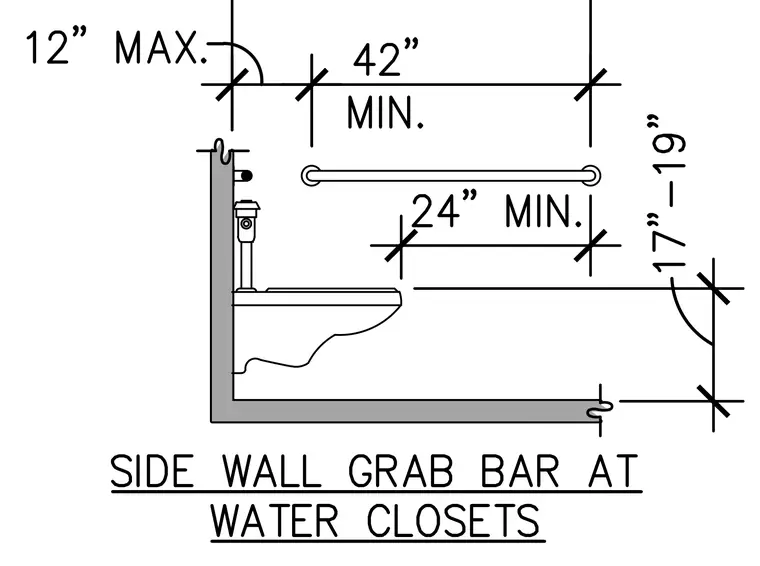

A wall-hung water closet is installed adjacent to a side wall with a horizontal grab bar mounted at specific vertical and horizontal dimensions. The top of the grab bar is positioned between 17 inches and 19 inches above the finished floor, maintaining a minimum clearance of 24 inches above the water closet fixture. The grab bar has a minimum length of 42 inches and is located with a maximum distance of 12 inches from the rear wall to the front end of the bar.
