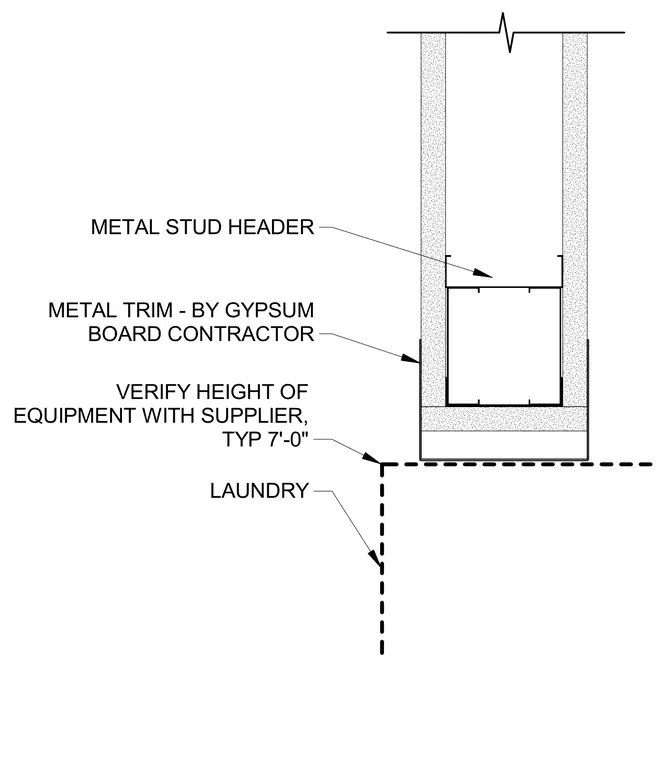

A metal stud header frames the corridor soffit, enclosed by gypsum board panels on the faces and underside. Metal trim is installed by the gypsum board contractor at the lower edge. Equipment height is verified with the supplier at a typical seven-foot clearance above the laundry area.
METAL STUD HEADER METAL TRIM - BY GYPSUM BOARD CONTRACTOR LAUNDRY VERIFY HEIGHT OF EQUIPMENT WITH SUPPLIER, TYP 7'-0"
