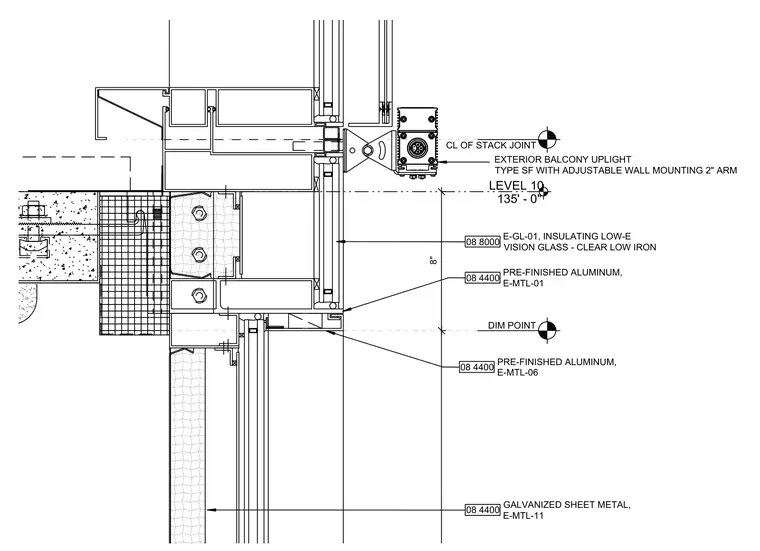

This wall section detail at Level 10 shows the intersection of an exterior balcony and glazed entry door assembly. The curtain wall framing incorporates pre-finished aluminum profiles with insulating low-E clear low-iron vision glass. An exterior balcony uplight fixture of Type SF with an adjustable wall mounting and a 2-inch arm is mounted near the stack joint center line. Galvanized sheet metal flashing and trim components complete the weather barrier at the head and sill transitions.
CL OF STACK JOINT EXTERIOR BALCONY UPLIGHT TYPE SF WITH ADJUSTABLE WALL MOUNTING 2" ARM LEVEL 10 135' - 0" 08 8000 08 4400 E-GL-01, INSULATING LOW-E VISION GLASS - CLEAR LOW IRON PRE-FINISHED ALUMINUM, E-MTL-01 DIM POINT 08 4400 PRE-FINISHED ALUMINUM, E-MTL-06 08 4400 GALVANIZED SHEET METAL, E-MTL-11 8"
