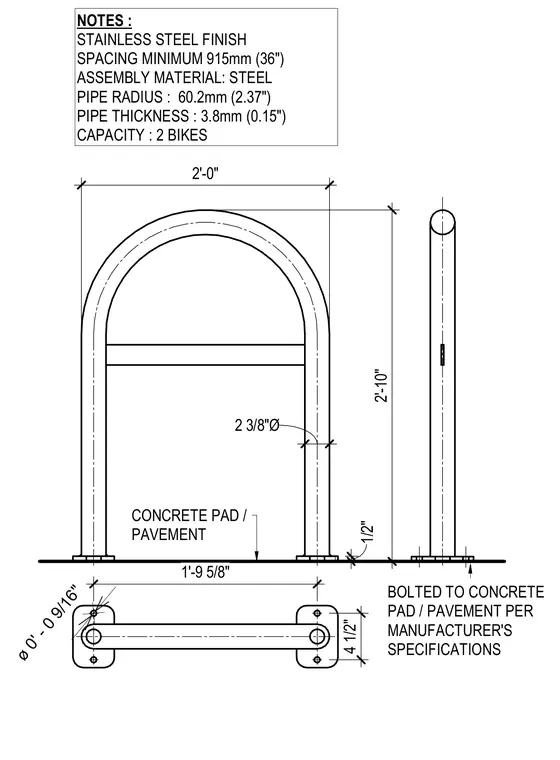

An inverted U-shaped steel pipe bike rack is surface-mounted to a concrete pavement pad using bolted base plates. The tubular steel assembly has a 2-inch outside radius and a 3.8-millimeter pipe thickness, finished in stainless steel. The main loop spans 2 feet wide with a 2-foot-10-inch overall height and includes a crossbar. Each leg terminates in a flanged base plate bolted directly to the concrete pad per the manufacturer's specifications. Minimum spacing between adjacent racks is maintained at 36 inches.
2'-0" 2'-10" 4 1/2" 1'-9 5/8" 1/2" 2 3/8"Ø NOTES : STAINLESS STEEL FINISH SPACING MINIMUM 915mm (36") ASSEMBLY MATERIAL: STEEL PIPE RADIUS : 60.2mm (2.37") PIPE THICKNESS : 3.8mm (0.15") CAPACITY : 2 BIKES ø 0' - 0 9/16" CONCRETE PAD / PAVEMENT BOLTED TO CONCRETE PAD / PAVEMENT PER MANUFACTURER'S SPECIFICATIONS
