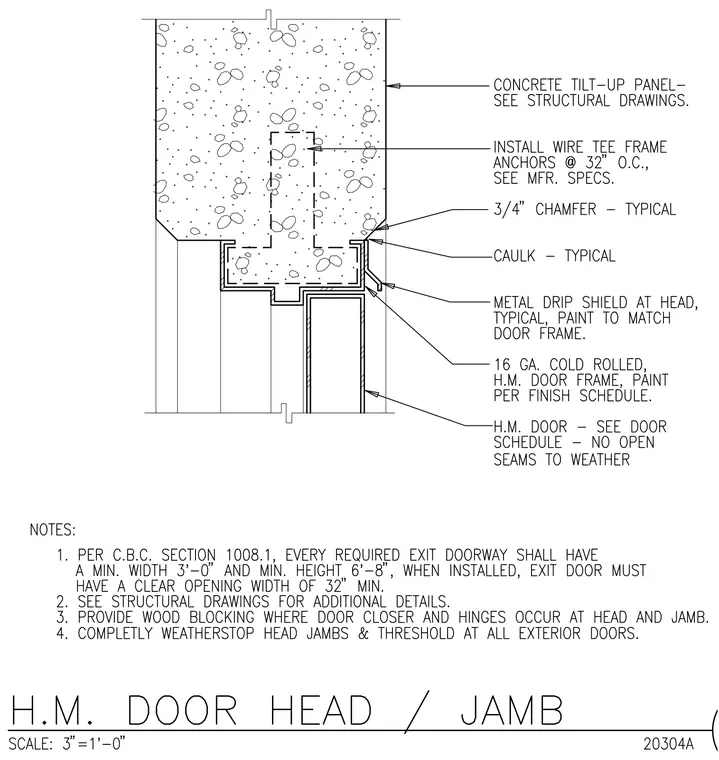

A sixteen-gauge cold-rolled hollow metal door frame installs within a recessed opening of a concrete tilt-up panel. Wire tee frame anchors secure the head at thirty-two inches on center per manufacturer specifications. A metal drip shield fastens at the head with sealant applied at the joint, and three-quarter-inch chamfers shape the concrete corners. The hollow metal door mounts within the frame without open seams to the weather.
