Window Jamb and Roller Shade Head Detail at Steel Beam and Stucco Wall

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Beams Windows Ceilings Anchors / Embeds

Connections

Welded Connection

About this detail

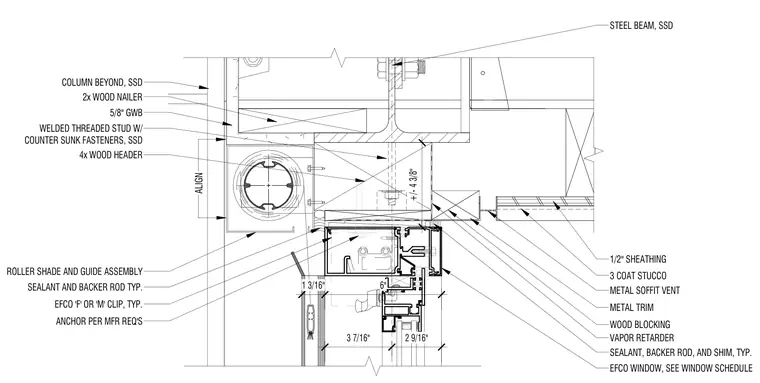

A steel beam supports a two-inch wood nailer and five-eighths-inch gypsum wallboard, anchoring an EFCO window frame via a welded threaded stud with countersunk fasteners and four-by wood blocking. A roller shade and guide assembly is integrated into the head pocket, sealed with standard sealant and backer rod. The exterior wall features a one-half-inch sheathing layer finished with a three-coat stucco system over a vapor retarder. A metal soffit vent and metal trim finish the ceiling and wall junction, with window clips aligned to manufacturer requirements.
