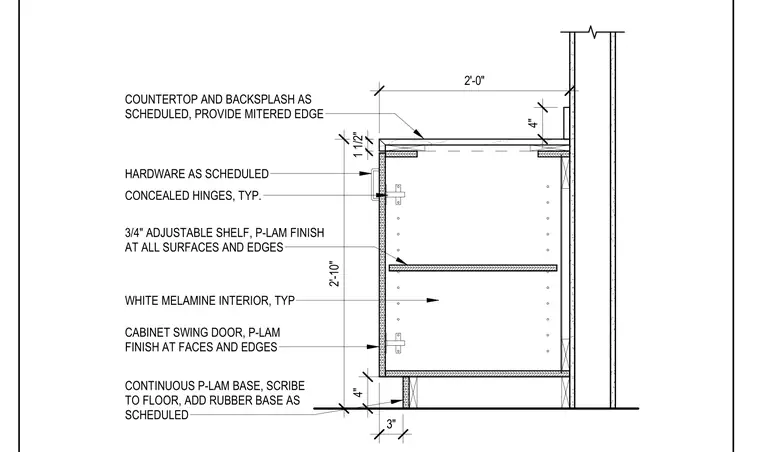

This base cabinet assembly features a countertop and backsplash with a mitered edge, supported by a cabinet frame with concealed hinges and hardware as scheduled. The interior is finished with white melamine, while the cabinet swing door and exterior faces are clad in plastic laminate. A three-quarter inch adjustable shelf with plastic laminate finish on all surfaces and edges is supported by shelf pins. The unit sits on a continuous plastic laminate base that is scribed to the floor, with a rubber base added as scheduled.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
