Architectural · A-6HASV

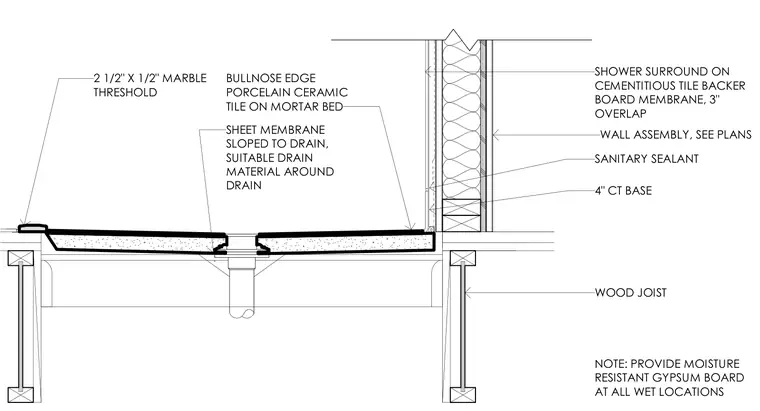

Roll-In Shower Threshold and Drain Detail at Wood Framing

Materials

Timber / Wood Masonry / CMU Marble Gypsum / Drywall

Elements

Beams Walls Waterproofing / Flashing Drainage

About this detail

The shower floor assembly is supported by wood joists and features a mortar bed sloped toward the drain with a continuous sheet membrane and suitable drain material. A two and a half inch by half-inch marble threshold transitions at the entry edge. The shower surround consists of cementitious tile backer board with a waterproof membrane, three-inch overlaps, sanitary sealant, and a four-inch ceramic tile base. Wall assemblies are detailed per plans, with moisture-resistant gypsum board provided at all wet locations.
